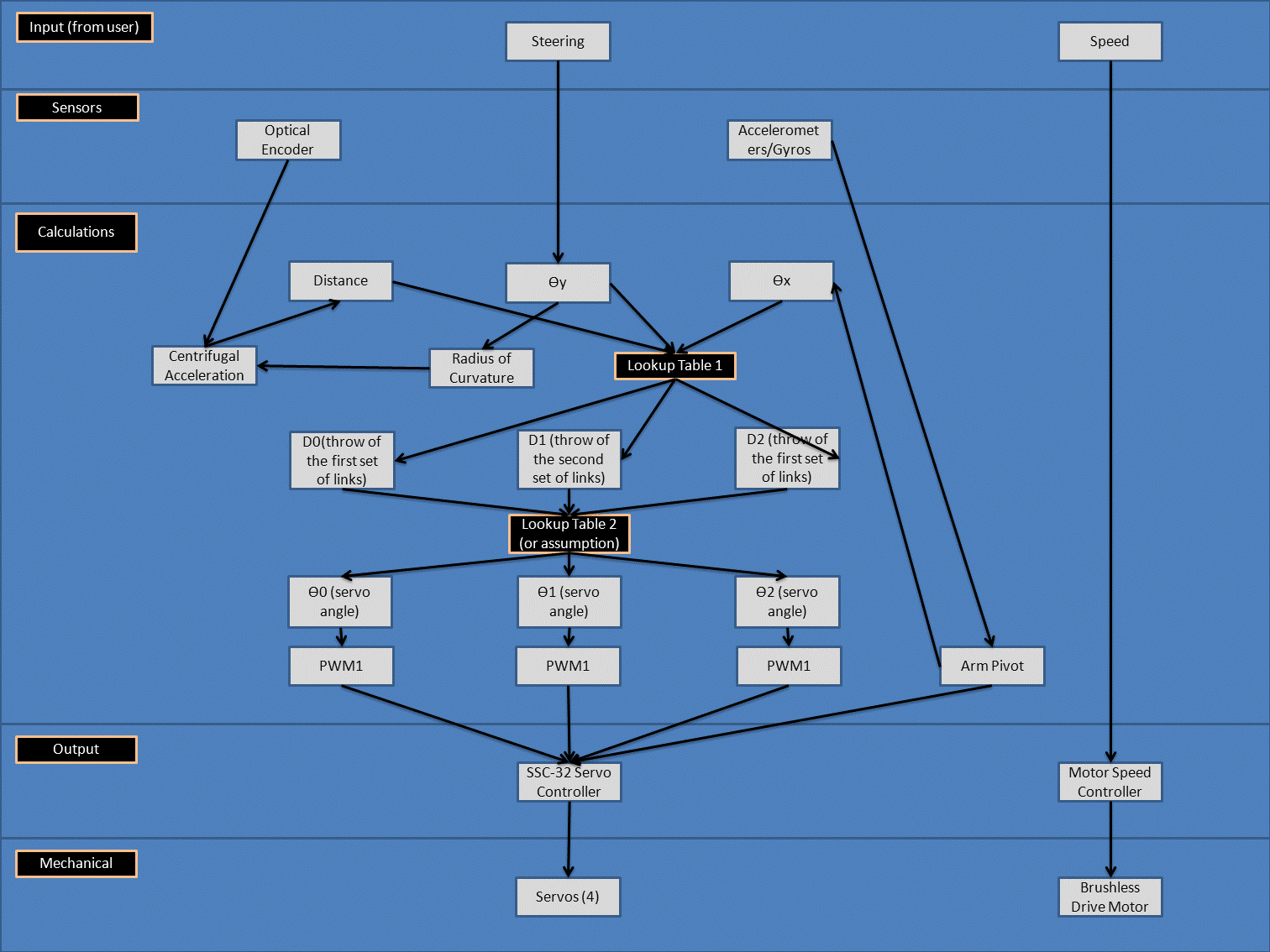

Here is a very preliminary high level block diagram for one telescoping suspension arm. It gives a good idea of what the vehicle is monitoring and how the linkage geometry interrelates.
